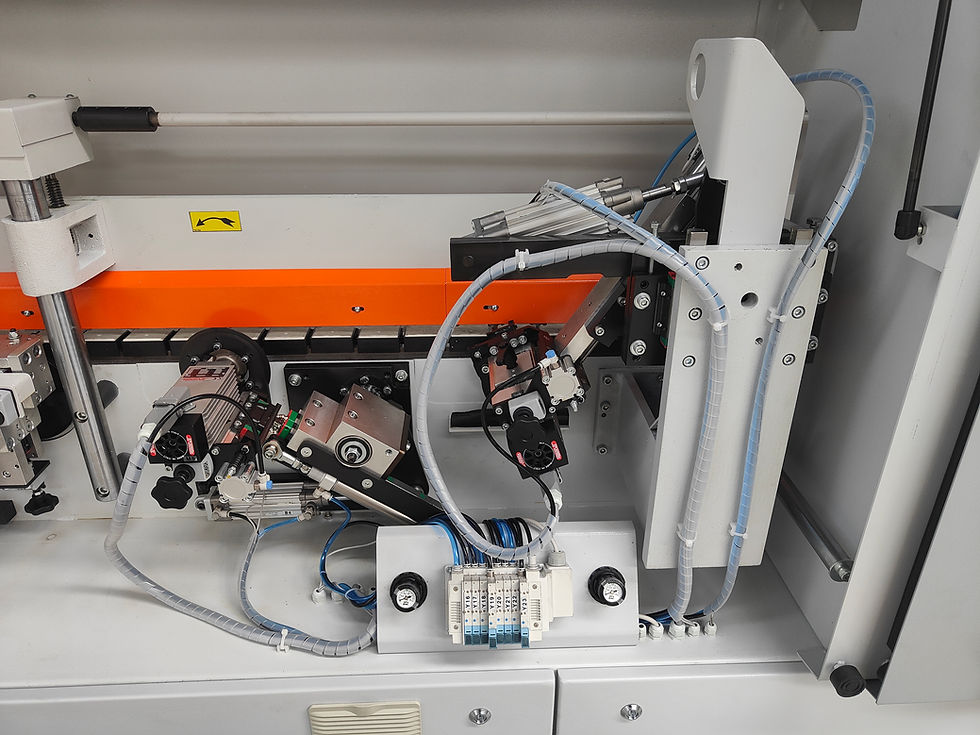

Genisis 2RTF

Genisis 2RTF

The Genisis 2RTF is a heavy duty machine designed for those looking for greater levels of productivity. The machine has 2 x corner rounders with a dual track speed capable of running gat 14 m/min.

 These heavy duty, high specification machines share some of the same features found on the RTF machine including anti adhesive spray, pre milling, pre heating of the edge, a quick release gluepot, separate end trimming saws, flush trim, both profile and glue scrapers followed by solvent spray and buffing. These machines also have the nesting solution making them an ideal choice for those with a CNC.

Being a faster operating machine, a number of motors have also been upgraded including the pre milling motors and the top trimmer which always trims more of the excess tape away.

This machine also has a 10” colour touchscreen control and motorized lifting of the pressure beam.

CNC Option - There is also the option to have this machine with CNC control which will automatically set to the panel height and the working stations will set to the thickness of the tape.

Specification

Genisis 2RTF



Minimum working height

8mm

Maximum working height

60mm

Minimum length

120mm

Minimum width

100mm

Minimum thickness of edge

0.4mm

Maximum thickness of edge

3mm

Feed Speed

10 – 14 m/min

Anti  adhesive spray

Yes

First Pre milling Motor

2.2 Kw, 12,000 RPM

Second Pre Milling Motor

2.2 Kw, 12,000 RPM

Edge Pre Heating

Infra Red

Front and back trimming motor

2 x 0.37 Kw, 12,000 RPM

Top and Bottom trimming motor

1 x 0.75Kw to top 1 x 0.55 Kw, 12,000 RPM

Corner rounding unit

2 x 0.55 Kw, 12,000 RPM

Top and Bottom profile scrapers

Quick exclusion

Top and bottom glue scrapers

Quick exclusion

Top and bottom polishing spray

Yes

Top and bottom buffers

2 x 0.18 Kw, 2,800 RPM

Dust extraction outlets

1 x 120mm dia + 1 x 200mm dia

Compressed air requirement

6.5 Bar

Total Installed Power requirement

14 Kw

Overall dimensions L x B x H

5050 x 1440 x 1730mm

Weight

1700 Kg
