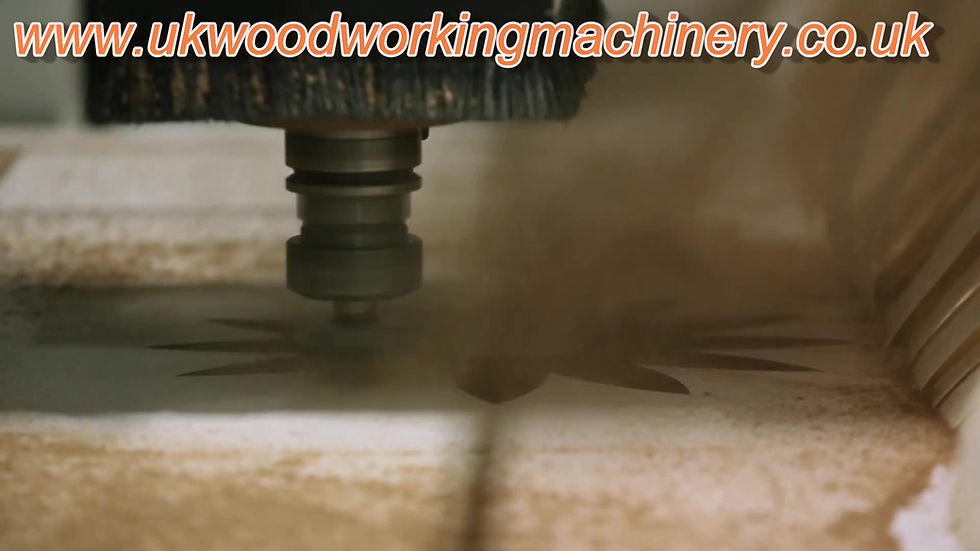

AES Nova Super

These machines combine quality and performance with economy to give the small to medium furniture manufacturer big machine productivity at entry level prices.



All machines complete with;

  • Isac CNC with 17" colour TFT screen
  • Centralised lubrication
  • All axis controlled by state of the art servo motors
  • Automatic tool offset
  • Easy referencing using reference pistons
  • Alphacam operating software



Alphacam CAD/CAM

Alphacam is a full-featured, easy to use CAD/CAM solution for manufacturers desired fast, efficient toolpaths and the generation of reliable, machine ready CNC code. Program provides you with the complete machining capabilities to manufacture anything from simple 2 Axis parts though to complex 5 Axis components.

•  Nesting Solution

•  3D Engraving and Routing Applications

•  Aggregate and Boring Unit Support

•  Extensive Usage Area With Additional Modules



  •

    Nova Super 1325

    Nova Super 1632

    Nova Super 1640

    Nova Super 2128

    Nova Super 2132

    Nova Super 2142

    Working Capacity

    1300 x 2500 mm

    1600 x 3200 mm

    1600 x 4000 mm

    2100 x 2800 mm

    2100 x 3200 mm

    2100 x 4200 mm

    Table

    Phenolic

    Phenolic

    Phenolic

    Phenolic

    Phenolic

    Phenolic

    Linear Tool Changer

    8 position

    8 Position

    8 position

    12 Position

    12 Position

    12 Position

    X Axis speed

    70m/min

    70m/min

    70m/min

    70m/min

    70m/min

    70m/min

    Y Axis Speed

    70 m/min

    70m/min

    70m/min

    70m/min

    70m/min

    70m/min

    Z Axis speed

    20 m/min

    20 m/min

    20 m/min

    20 m/min

    20 m/min

    20 m/min

    Travel of Z axis

    300mm

    300mm

    300mm

    300mm

    300mm

    300mm

    Router motor

    HSD 9Kw (12 Hp)

    HSD 9Kw (12 Hp)

    HSD 9Kw (12 Hp)

    HSD 9Kw (12 Hp)

    HSD 9Kw (12 Hp)

    HSD 9Kw (12 Hp)

    Router speed (max)

    24,000 RPM

    24,000 RPM

    24,000 RPM

    24,000 RPM

    24,000 RPM

    24,000 RPM

    Vacuum

    Becker 250m3

    Becker 250m3

    Becker 250m3

    Becker 250m3

    Becker 250m3

    Becker 250m3

    Vacuum Area

    Single

    Single

    Single

    Single

    Single

    Double

    CAD/CAM Program

    Alphacam 2D Essential

    Alphacam 2D Essential

    Alphacam 2D Essential

    Alphacam 2D Essential

    Alphacam 2D Essential

    Alphacam 2D Essential

    Installed Power

    25Kw (34HP)

    25Kw (34HP)

    25Kw (34HP)

    25Kw (34HP)

    25Kw (34HP)

    25Kw (34HP)

    Approx Weight

    3150 Kg

    3450 Kg

    3700 Kg

    3500 Kg

    3,650 Kg

    5,000 Kg



    Options Include

    Coolant to cutting tool

    Barcode Reader

    Double working zone

    HSD Face boring unit (9 spindles)

    Increase to HSD Router motor

    Liquid cooling to router motor

    Increase to vacuum bed

    Upto 21 vacuum areas

    VacuboostThis is an intelligent vacuum system giving approximately 10 times the hold of a standard vacuum.

    Alphacam Standard or Advanced

    Additional software and macros depending upon requirements

    Safety mats or safety light barrier

    Vacuum Blocks

    Aggregates

    C axis

    USP power supplies

    Chiller for liquid cooled motors
